Compression Gland Gaskets and Inserts

Name: Compression Gland Gaskets and Inserts
Brand: PMS Instrument Company

Shop compression gland gaskets and inserts from PMS Instrument, including sealing system options for multiple sample sizes, grasses, almonds, and pressure chamber applications.

Accessories

Support accurate pressure chamber testing with the proper sealing system.

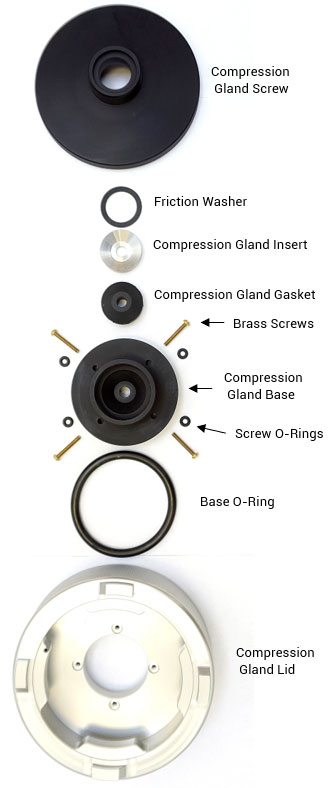

The Compression Gland Gasket and Insert can be quickly removed by un-screwing the Compression Gland Screw, removing the insert and gasket and replacing them with the desired sized gasket and insert. For a tutorial on this click here.

The Friction Washer fits between the Compression Gland Screw and the Compression Gland Insert. It simply keeps the metal from rubbing and chafing. If you need a replacement, contact us directly.

Maintenance for the Compression Gland is simple but necessary. Check our Resources page for more information.

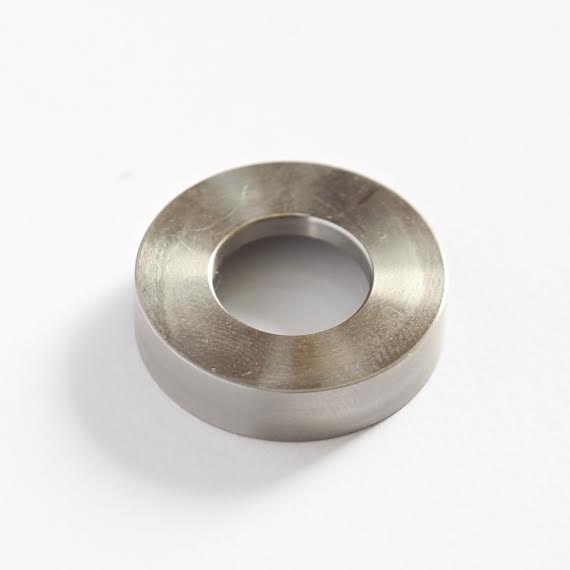

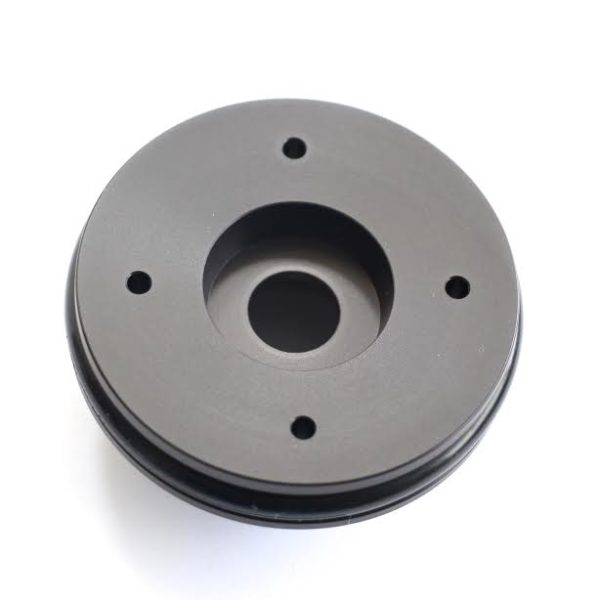

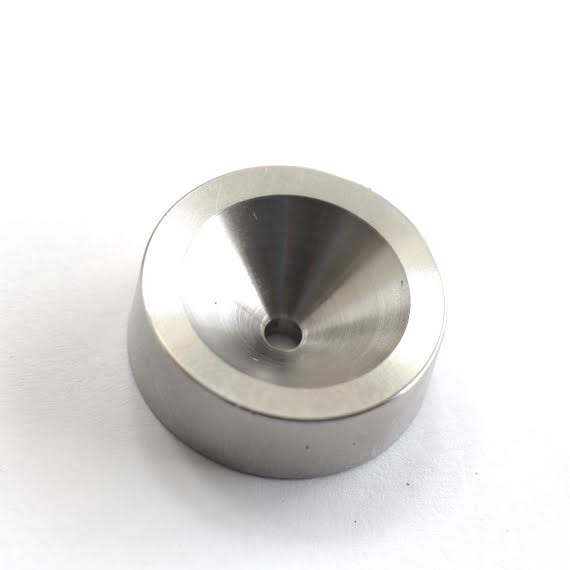

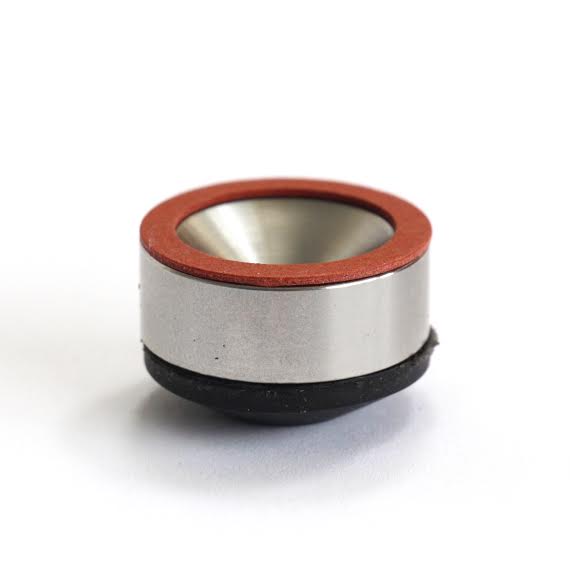

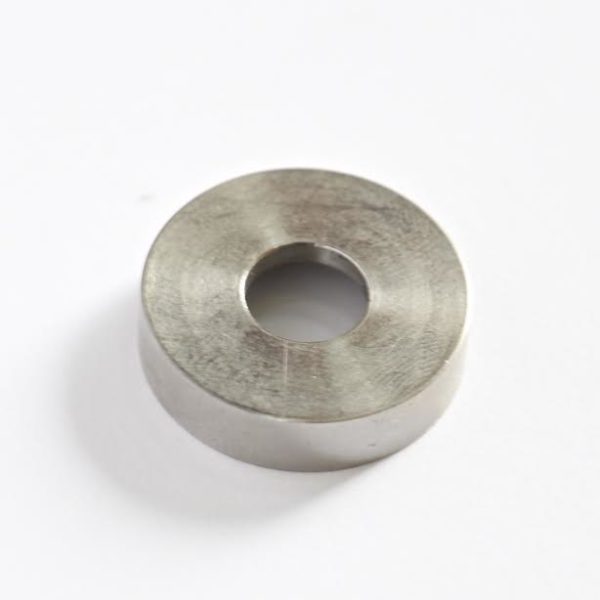

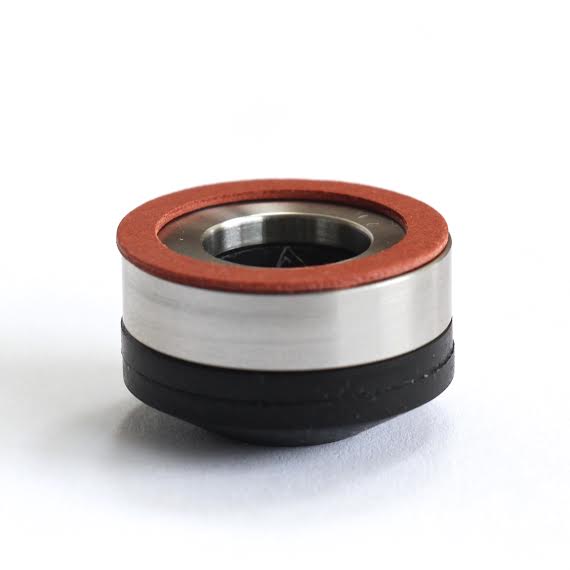

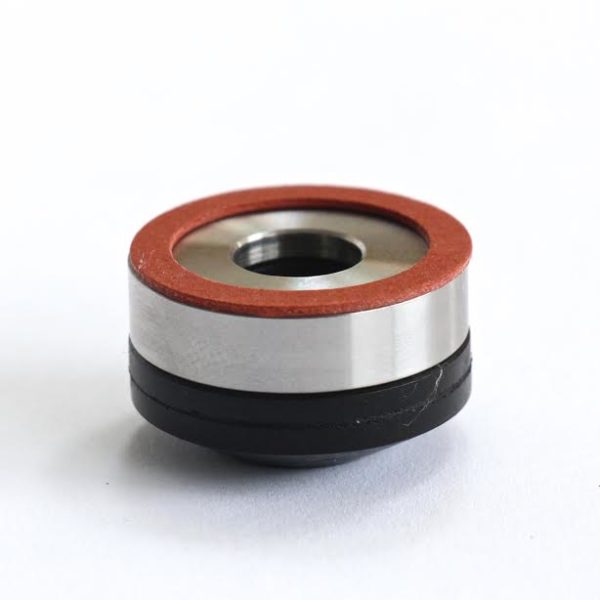

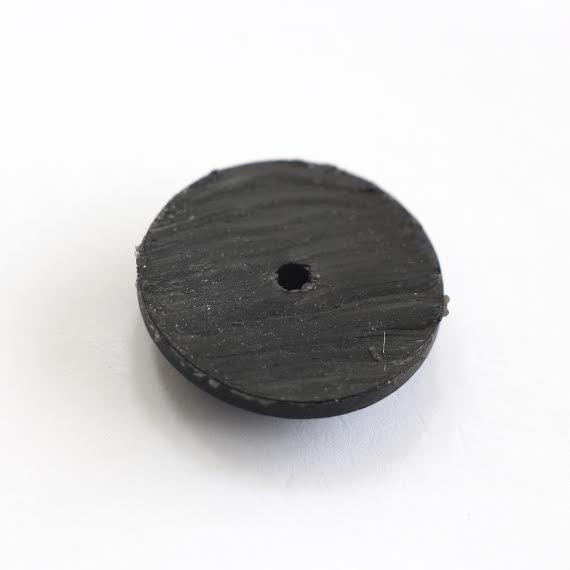

CAUTION! – Always fit the appropriate sized insert with appropriate sized gasket to ensure the sample does not extrude or shoot out of the lid. 1/2 inch Compression Gland Base should be used only with the 3/8 and 1/2 inch sealing systems. 1/4 inch Compression Gland Base should be used with 1/8, 1/4 and Almond sealing systems. Grass Compression Gland System should be used only with Grass Compression Gland Base.

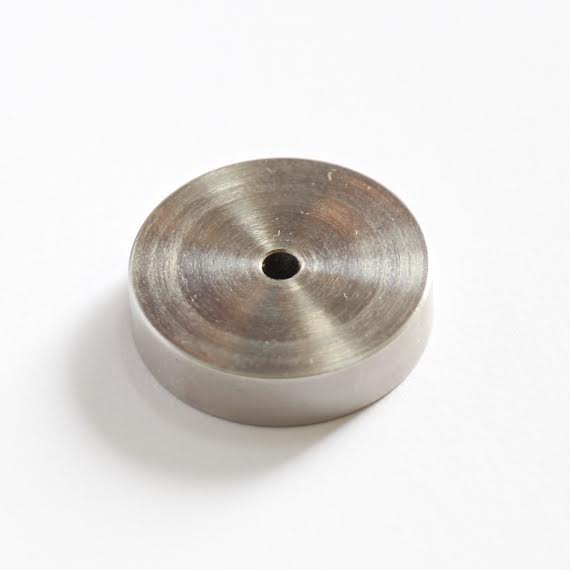

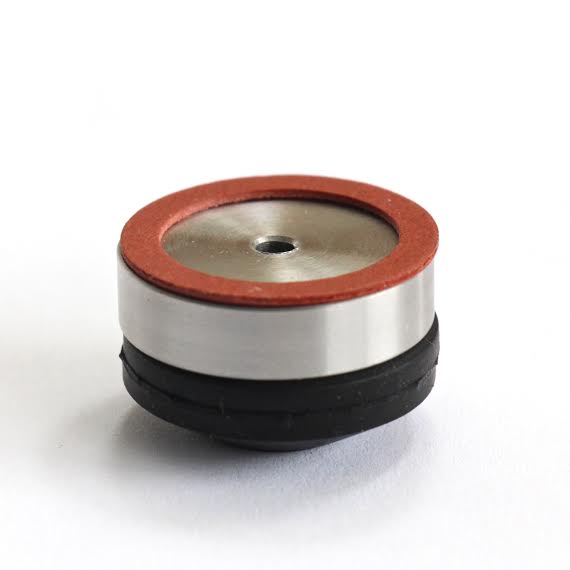

1/8 Inch Sealing System

1/8 Inch diameter adjustable hole (~3mm).
3/4 Inch minimum sample length (~19mm).
Recommended for Almond, Prune, Conifer needles, and other similar sized petioles.
Range of compression: 1/8 Inch – Closed
Additionally works with Pump-Up Large Lid

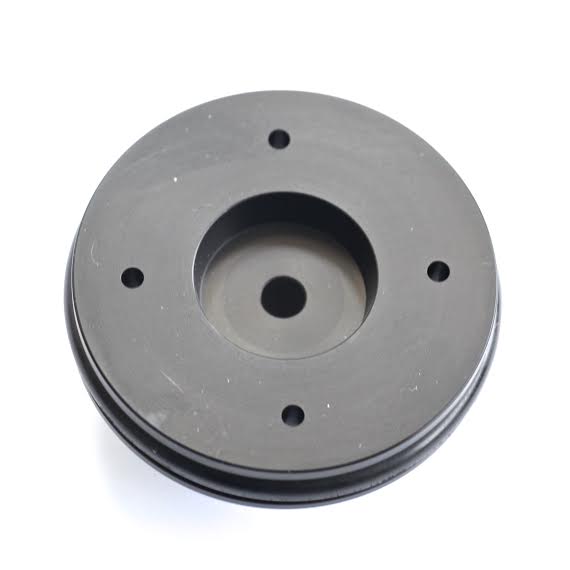

Requires 1/4 Inch Compression Gland Base – As shown in far right picture.

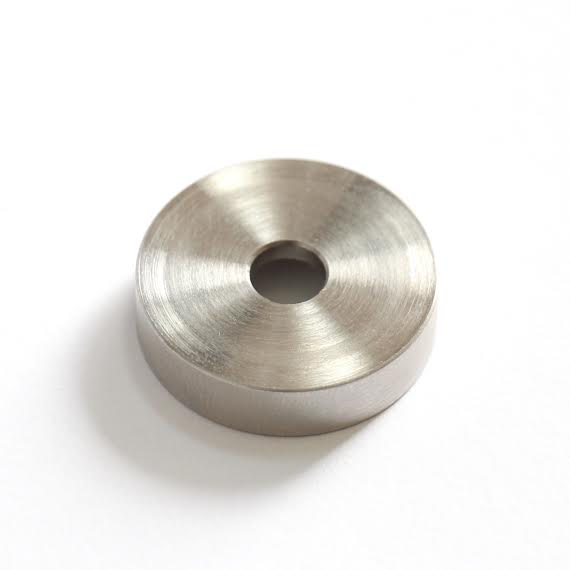

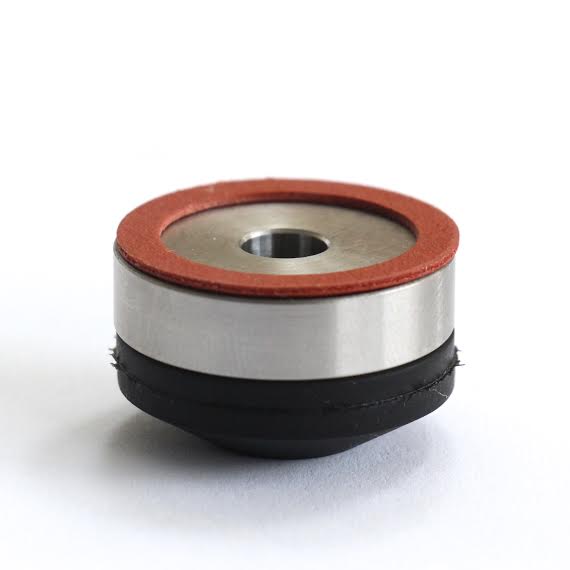

1/4 Inch Compression Gland

1/4 Inch diameter adjustable hole (~6mm).
3/4 Inch minimum sample length (~19mm).
Recommended for Wine Grape, Walnut, Conifer branches, and other similar sized petioles.
Range of compression: 1/4 Inch – Closed
Additionally works with Pump-Up Large Lid
Requires 1/4 Inch Compression Gland Base – As shown in far right picture
