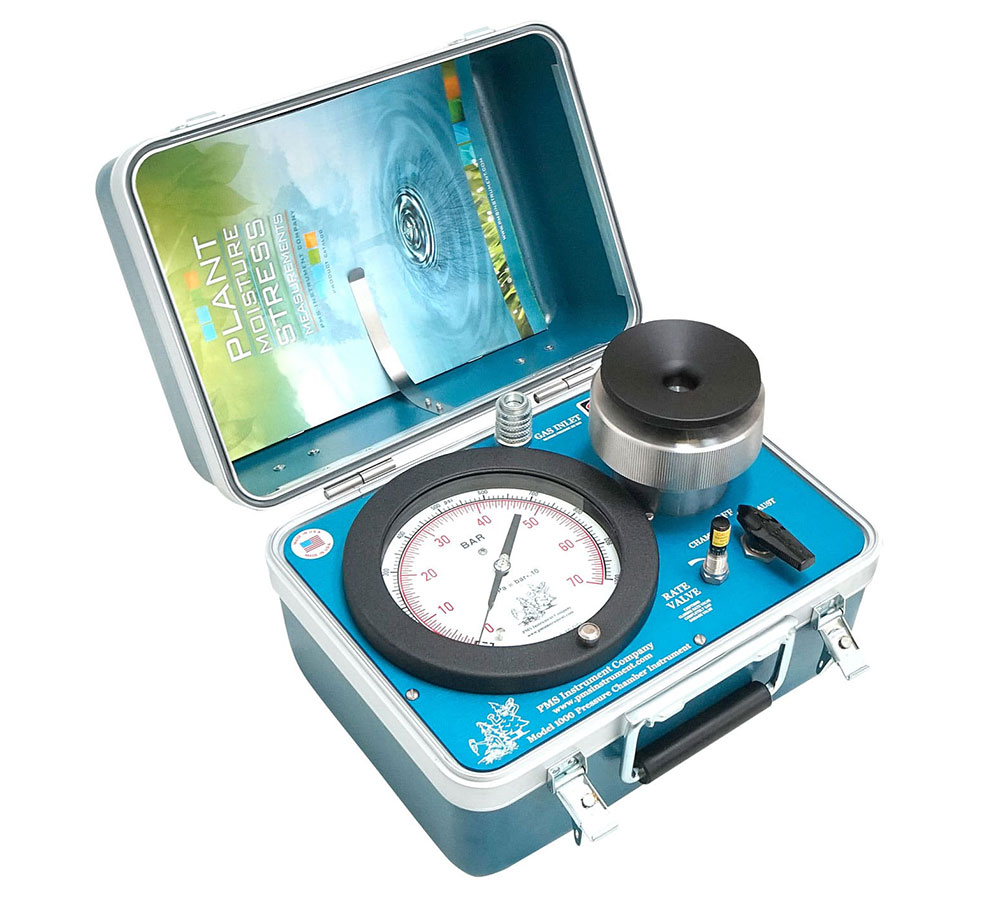

Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is up to 1/4” diameter. If you need other sealing options such as bladed grass or other semi-round sizes check our other options.
This is an excellent choice for research due to the large range of operating pressure. It is good for work on high stress level plants, pressure volume curves but can also be used for routine water measurements for crop plants.
The instrument requires a compressed nitrogen source. You can use it in a lab or green house with a large cylinder or buy our light weight Portable Tank to allow for field work. For more information about how to use the Model 1000, please check our Resources page.
1/4 Inch Compression Gland Sealing System, 5 Extra 1/4 Compression Gland Gaskets, 6 foot Filling Hose, 1 – Solid Lab Stopper for instrument testing, O-Ring lubricant and Lithium Grease, 11/32 inch wrench and 3/32 inch Allen Key for Control Valve Adjustment, Safety Glasses and a color Operating Instructions Manual.
| Specification | Details |
|---|---|
| Maximum Operating Pressure | 70 bar |
| Chamber Construction | Solid Stock Stainless Steel |
| Chamber Size | 2.5 inch inside diameter x 5.0 inch inside depth |
| Read-out | Bourdon Tube Gauge (Bar-PSI Scale) |
| Size (L x W x H) |
13 × 11 × 10 inches 33 × 28 × 24 centimeters |
| Weight | 20 Lbs / 9 Kg |
| Gauge | 6” Diameter Gauge |
| Accuracy | 0.5% accuracy |
| Range | 70 bar (7 Mpa) range |
