The instrument can be used as a Pressure Chamber or as a Cavitation Chamber by simply switching a valve. This unique design allows the user to have both instruments in one unit at a cheaper cost than buying the two instruments separate.
The instrument can be connected directly to a Nitrogen Cylinder with 207 Bar/3000 PSI pressure. The Digital Gauge offers features such as back lighting and multiple pressure scales (Bar, PSI or MPa).
Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is up to 1/4” diameter. If you need other sealing options such as bladed grass or other semi-round sizes check our other options.
This is a specialty instrument that will benefit the user who is doing both Cavitation work and Pressure Chamber work. The instrument requires a compressed nitrogen source. You can use it in a lab or green house with a large cylinder or buy our light weight Portable Tank to allow for field work. For more information about how to use the Model 1505D-EXP, please check our Resources page.
1/4 Inch Compression Gland Sealing System, 5 Extra 1/4 Compression Gland Gaskets, 6 foot Filling Hose, 1 – Solid Lab Stopper for instrument testing, O-Ring lubricant and Lithium Grease, 11/32 inch wrench and 3/32 inch Allen Key for Control Valve Adjustment, Safety Glasses and a color Operating Instructions Manual.

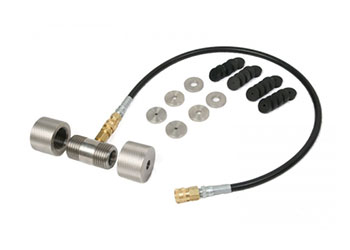

In addition the following items are for the Cavitation Chamber: 3 foot hose connecting to Cavitation Chamber, Cavitation Chamber, 2 metal inserts of following sizes (5/8”, 3/8”, 3/16”), 5 rubber gaskets of each size (blank, 1/16”, 1/8”, 3/16”).
| Specification | Details |
|---|---|
| Maximum Operating Pressure | 100 bar |
| Chamber Construction | Solid Stock Stainless Steel (2.5 inch dia. x 5.0 inch depth) |
| Cavitation Chamber Construction | Anodized Aluminum (1.0” Dia x 3.25” Length) |
| Read-out | Digital Gauge (Reads in Bar, PSI or MPa) |
| Size (L x W x H) |
13 × 11 × 10 inches 33 × 28 × 24 centimeters |
| Weight | 25 Lbs/ 11 Kg |
| Gauge | 2.5” Diameter Gauge |
| Accuracy | 0.5% accuracy |
| Range | 100 bar (10 Mpa) range |

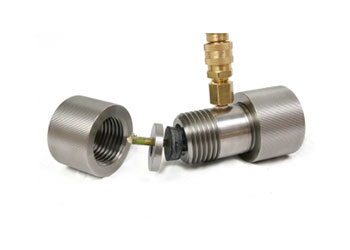

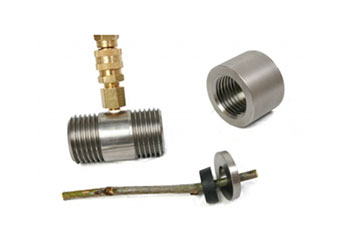

The rubber gaskets slide down the sample and seat inside the chamber.

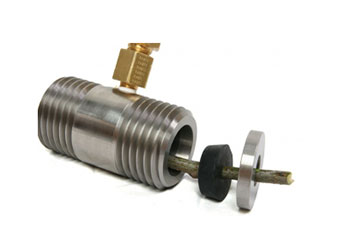

The metal “inserts” slide down behind the gaskets to help them seal.

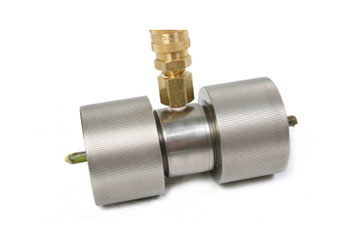

The caps screw down to finish the seal and hold everything in place.
The final product looks like this.
The sample must be at least 4.25 inches to properly pass through the chamber.
