Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is up to 1/4” diameter. If you need other sealing options such as bladed grass or other semi-round sizes check our other options.

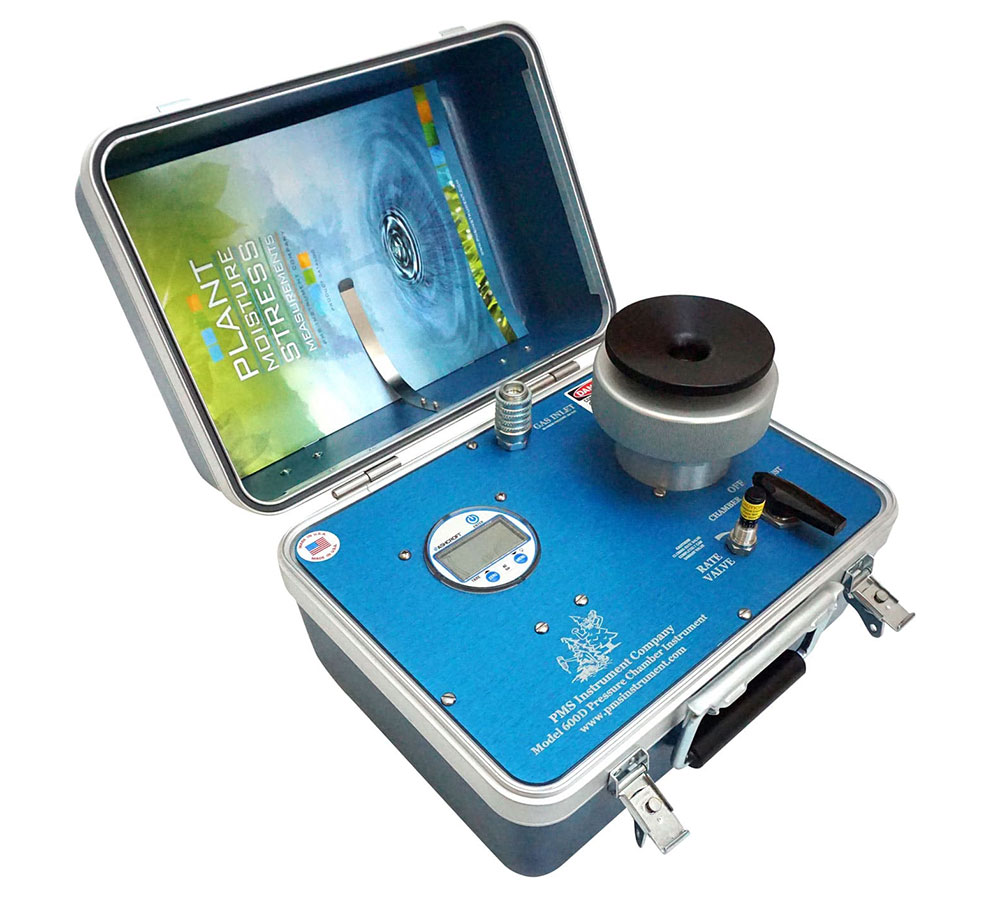

This is an excellent choice for routine water measurements for crop plants and light research in plants with little to moderate water stress. For extensive research projects you might consider a Model 1000 or Model 1505D due to the large range of operating pressure. The instrument requires a compressed nitrogen source. You can use it in a lab or green house with a large cylinder or buy our light weight Portable Tank to allow for field work. For more information about how to use the Model 600D, please check our Resources page.
1/4 Inch Compression Gland Sealing System, 5 Extra 1/4 Compression Gland Gaskets, 6 foot Filling Hose, 1 – Solid Lab Stopper for instrument testing, O-Ring lubricant and Lithium Grease, 11/32 inch wrench and 3/32 inch Allen Key for Control Valve Adjustment, Safety Glasses and a color Operating Instructions Manual.
| Specification | Details |
|---|---|
| Maximum Operating Pressure | 40 bar |
| Chamber Construction | Anodized Aluminum |
| Read-out | Digital Gauge (Reads in Bar, Mpa or PSI) |
| Size (L x W x H) |
13 × 11 × 10 inches 33 × 28 × 24 centimeters |
| Weight | 14 Lbs / 6 Kg |
| Gauge | 2.5” Diameter Gauge |
| Accuracy | 0.5% accuracy |
| Range | 40 bar (4 Mpa) range |
